Seamless DVI + audio inputkaart voor de FMX serie matrix...
FMX-IDV
New product

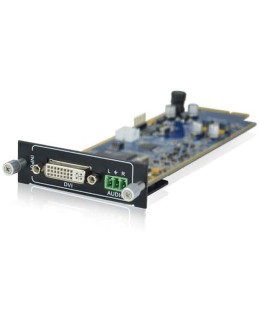

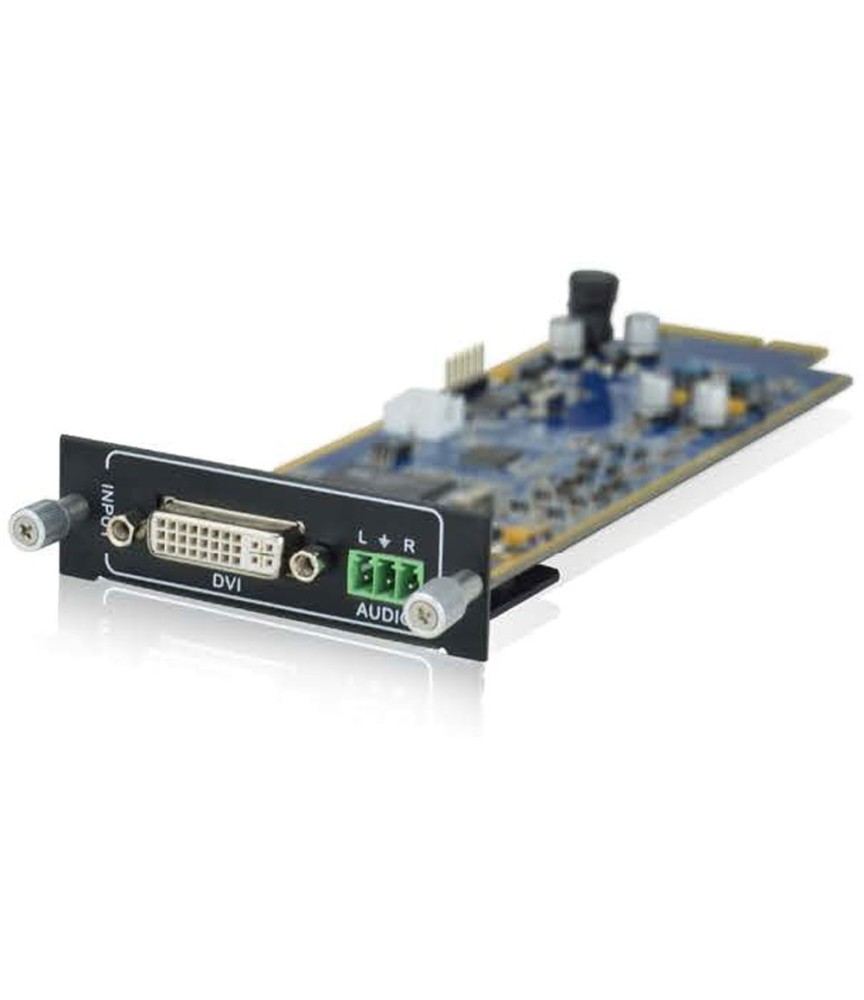

Seamless DVI + audio inputkaart voor de FMX serie matrix switchers. Deze inputkaart is geschikt voor resoluties tot 1920x1200.
Seamless DVI inputkaart voor de FMX serie matrix switchers. Deze inputkaart is geschikt voor resoluties tot 1920x1200.
Input | Output | ||
Kaart | Poorten | Kaart | Poorten |
FMX-ITP | 1x HDbaseT, analoge audio, R232 | FMX-OTP | 1x HDbaseT, analoge audio, R232 |
FMX-ISD | 1x SDI in, 1x SDI loopthrough | FMX-OSD | 1x SDI in, 1x SDI loopthrough |
FMX-IVG | 1x VGA , analoge audio | FMX-OVG | 1x VGA , analoge audio |
FMX-IDV | 1x DVI, analoge audio | FMX-ODV | 1x DVI, analoge audio |
FMX-IHD | 1x HDMI, analoge audio | FMX-OHD | 1x HDMI, analoge audio |
Physical | |
Humidity | 10%~90% |
Temperature | 0~50℃ |
Power consumptions | 4.5 Watt |
Signal | |
Inputs | 1x DVI (24+5) female, 1x Audio (terminal block) |
Bandwidth | 10.2 Gbp/s |
Maximum resolution | 1920 x 1080p |
Supported resolutions | Auto, 800x600, 1024x768, 720p, 1280x1024, 1080i, 1080p, 1920x1200 |
Upscale resolutions | No scaling |
Standards | |
HDMI Standard | HDMI 1.3 |
HDCP Standard | HDCP 1.3 |
General specifications | |
Auto switching | No |
EDID Management | Ja |
Seamless Switching | Yes |
